Stainless Steel Check Valve Swing Type Non Return Valve DIN PN16
  • Stainless Steel Check Valve Swing Type Non Return Valve DIN PN16
Stainless Steel Check Valve Swing Type Non Return Valve DIN PN16
Certification: AIP6D,API598,API600,CE,ISO9001,FM,UL etc.
Transport Package: Wooden box packaging, or as per customer's request.
Quotation period: All quotations and drawings will be provided within 24 hours.
Delivery Time:
We have our own foundry to gurantee casting pieces in time, and sufficient valve parts in stock to ensure fast delivery time.
Quality Control:
All valves will be double side pressure test to make sure no leakage before shipment
Talor-Made Service:
CAD design to fulfill customers’request, OEM is available.

Product Introduction

    PERFORMANCE ADVANGATE

    1.Rational structure, reliable sealing, excellent performance,pretty appearance.

    2.Co-radix alloy welded sealing surface, anti-wearing, erosion-proof abrasion-proof and longer use life.

    3.Inside-set bolt-bearing structure reduces leakage and reliable use.

    4.Different parts materials and different sizes for flange, butt-welding are available for sensible combination according

    to different working facts and customer's requirements.



    TECHNICAL SPECIFICATION

    Model:                                     H44H-16P

    Working Pressure :                 1.6Mpa

    Working Temperature:            ≤425°C

    Nominal Size:                         DN50-600

    End Connection:                     RF Flange,RTJ Flange,ASME B16.5

    Design Standard:                    BS1868,API6D,ASME B16.34

    Face To Face:                         ASME B16.10

    Flange Drilling:                        ASME B16.5,ASME B16.47

    Inspection And Test:               API598,API6D



    PRODUCT PARTS AND MATERIALS

    Body Material:                        SS304,SS316,CF8,CF8M

    Bonnet Material:                     SS304,SS316,CF8,CF8M

    Disc Material:                         SS304,SS316,CF8,CF8M

    Pin:                                         SS304

    Seat:                                       SS304,SS316,CF8,CF8M

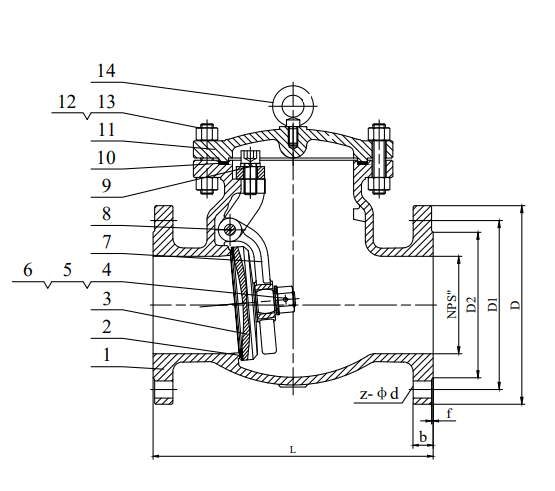

Dimensions

Technical Parameters PN16

DNLDD1n-db
402001451104-Φ1816
502301601254-Φ1816
652901801454-Φ1918
803101951608-Φ1820
1003502151808-Φ1820
1254002452108-Φ1822
1504802802408-Φ2324
20055033529512-Φ2326
25065040535512-Φ2530
30075046041012-Φ2530
