PERFORMANCE ADVANGATE

1.Full diameter.

2.Precision casting valve body.After the machining, the appearance of valve body is fine, nosand hole.

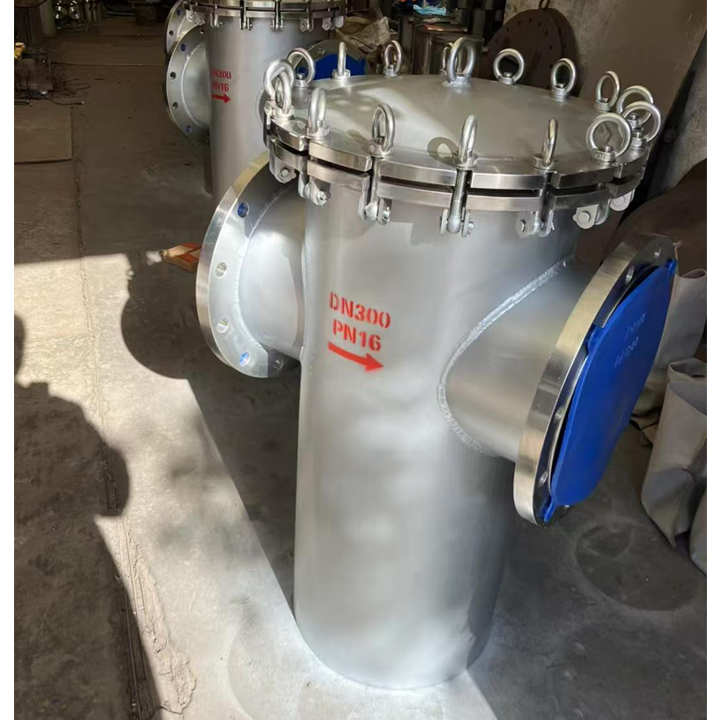

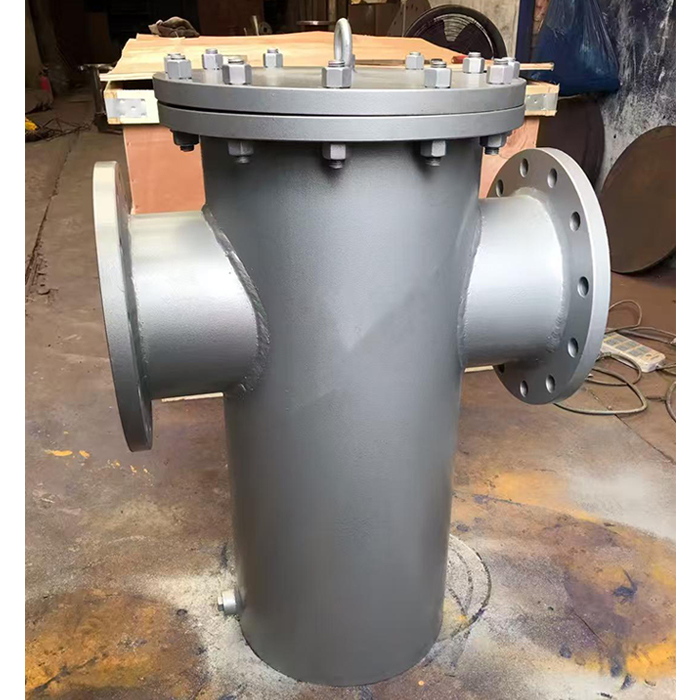

3.The basket structure design provides a larger impurity holding volume, suitable for media with high

impurity content, reducing the need for frequent cleaning or replacement.

4.The filter basket has various apertures (from coarse filtration to fine filtration), and different precisions

(such as 0.5mm to 3mm) can be selected according to needs to adapt to different working conditions.

5.Streamlined structure: When the medium passes through the filter basket, the resistance is small,

the pressure loss is low, energy saving and no influence on the system flow.

6.Each valve will be tested for pressure according to national standards.

TECHNICAL SPECIFICATION

Model:                                    GL41H-16C/GL41H-150LB/GL41H-300LB

Working Pressure :                 PN16/150LB/300LB

Working Temperature:            ≤300°C

Nominal Size:                         DN15-500

End Connection:                     RF Flange,RTJ Flange,ASME B16.5

Design Standard:                    HG20592(RF,FM,RJ);API600,DIN3352

Face To Face:                         ASME B16.10,DIN3202 F1

Flange Drilling:                       ASME B16.5,DIN EN1092-2

Inspection And Test:               API598,DIN EN12266-1

PRODUCT PARTS AND MATERIALS

Body Material:                        WCB,SS304,3316

Bonnet Material:                     WCB,SS304,SS316

Screen Material:                     SS304

Bolt:                                        B7

Nut:                                         2H
