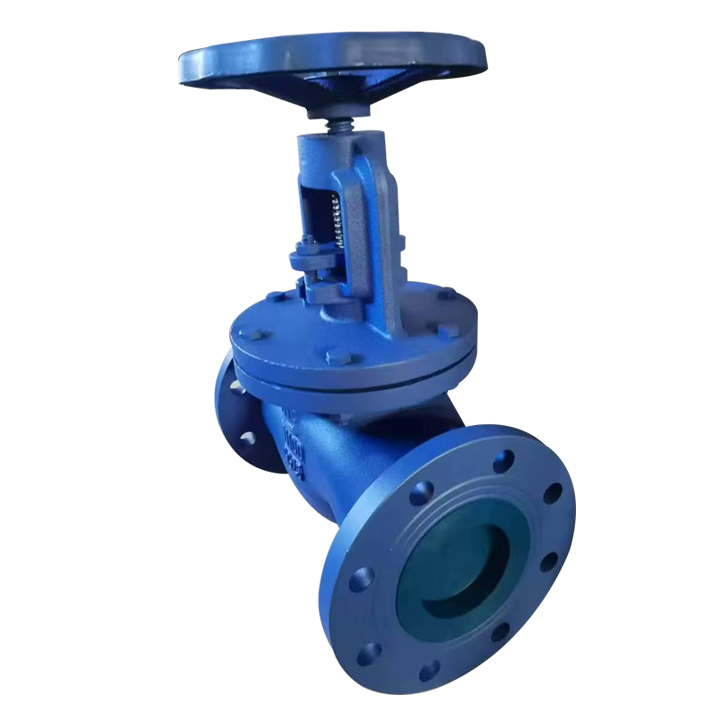

Cast Iron Metal Seated Globe Valve DIN Standard Pn16

Certification: AIP6D,API598,API600,CE,ISO9001,FM,UL etc.
Transport Package: Wooden box packaging, or as per customer's request.
Quotation period: All quotations and drawings will be provided within 24 hours.
Delivery Time:
We have our own foundry to gurantee casting pieces in time, and sufficient valve parts in stock to ensure fast delivery time.
Quality Control:
All valves will be double side pressure test to make sure no leakage before shipment
Talor-Made Service:
CAD design to fulfill customers’request, OEM is available.

Product Introduction

PERFORMANCE ADVANGATE

1.CNC lathe processing of internal parts, 2 shot blasting after appearance processing.

2.13%Cr SS seat, good wear resistance.

3.It can be used in steam medium, which greatly reduces the cost compared with cast steel materials.

4.Stem is processed by cyclone milling to avoid opening/closing stem difficulty.

TECHNICAL SPECIFICATION

Model: J41T-16/J41H-16

Working Pressure : 1.6Mpa

Working Temperature: ≤150°C

Nominal Size: DN50-DN300

End Connection: RF Flange

Design Standard: DIN3352

Face To Face: DIN3202 F1

Flange Drilling: DIN EN1092-2

Inspection And Test: DIN EN12266-1

PRODUCT PARTS AND MATERIALS

Body Material: Cast iron, GG25

Bonnet Material: Cast iron, GG25

Disc Material: Cast iron, GG25

Stem: SS410

Seat: Brass,Steel(cr13)

Handwheel: Steel

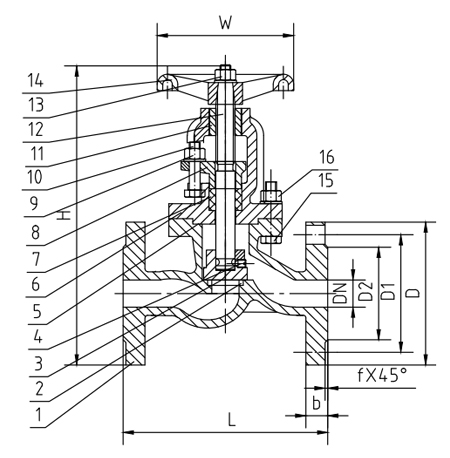

Dimensions

Technical Parameters PN16

DN	L	D	D1	D2	n-d	b	f
15	130	95	65	46	4-Φ14	14	2
20	150	105	75	56	4-Φ14	16	2
25	160	115	85	65	4-Φ14	16	2
32	180	140	100	76	4-Φ18	18	2
40	200	150	110	84	4-Φ18	18	3
50	230	165	125	99	4-Φ18	20	3
65	290	185	145	118	4-Φ18	20	3
85	310	200	160	132	8-Φ18	22	3
100	350	220	180	156	8-Φ18	24	3
125	400	250	210	184	8-Φ18	26	3
150	480	285	240	211	8-Φ23	26	3
200	600	340	295	266	12-Φ23	30	3
250	730	405	355	319	12-Φ27	32	3
300	850	460	410	370	12-Φ27	32	4
