Non Rising Stem Resilient Wedge Gate Valve BS5163
  • Non Rising Stem Resilient Wedge Gate Valve BS5163
Non Rising Stem Resilient Wedge Gate Valve BS5163
Certification: AIP6D,API598,API600,CE,ISO9001,FM,UL etc.
Transport Package: Wooden box packaging, or as per customer's request.
Quotation period: All quotations and drawings will be provided within 24 hours.
Delivery Time:
We have our own foundry to gurantee casting pieces in time, and sufficient valve parts in stock to ensure fast delivery time.
Quality Control:
All valves will be double side pressure test to make sure no leakage before shipment
Talor-Made Service:
CAD design to fulfill customers’request, OEM is available.

Product Introduction

    Gate Valve Specifications

    Model:Z45X

    Working pressure :PN16

    Working temperature:0~80°C

    Nominal size:DN 50-1200

    End connection:Double Flange

    Design standard:BS5163

    Flange drilling:BS4504

    Body material:Ductile iron, GGG40/50

    Body coating:Epoxy

    Wedge material:Ductile iron + EPDM/NBR Coated

    Handwheel Operation

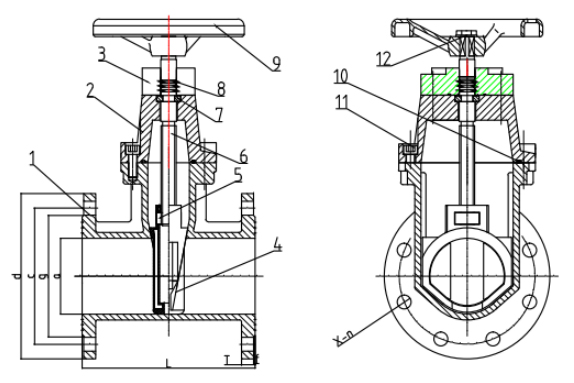

Dimensions

DNLHadcx-nTfg
50178240501651254-Φ1919399
65190270651851454-Φ19193118
85203290852001608-Φ19193132
1002293301002201808-Φ19193156
1252543801252502108-Φ19193184
1502674201502852408-Φ23193211
20029251020034029512-Φ23203266
25033060025040535512-Φ28223319
30035669030046041012-Φ28254370
35038178035052047016-Φ28274429
400406880400580525116-Φ3114480
450432100045064058520-Φ31304548
500457105550071565020-Φ34324609
600508126060084077020-Φ37365720
