High Performance Bare Shaft Wafer Butterfly Valve Without Actuator
  • High Performance Bare Shaft Wafer Butterfly Valve Without Actuator
High Performance Bare Shaft Wafer Butterfly Valve Without Actuator
Certification: AIP6D,API598,API600,CE,ISO9001,FM,UL etc.
Transport Package: Wooden box packaging, or as per customer's request.
Quotation period: All quotations and drawings will be provided within 24 hours.
Delivery Time:
We have our own foundry to gurantee casting pieces in time, and sufficient valve parts in stock to ensure fast delivery time.
Quality Control:
All valves will be double side pressure test to make sure no leakage before shipment
Talor-Made Service:
CAD design to fulfill customers’request, OEM is available.

Product Introduction


    PERFORMANCE ADVANGATE

    1.Precision casting valve body, smooth appearance, no sand hole.

    2.CNC lathe processing of internal parts, 2 shot blasting after appearance processing.

    3.13%Cr SS seat, good wear resistance.

    4.Inverted seal treatment of contact surface between bonnet and stem to avoid leakage.

    5.Stem is processed by cyclone milling to avoid opening/closing stem difficulty.




    TECHNICAL SPECIFICATION

    Model:                                       D73X-16P

    Working Pressure :                   1.6Mpa

    Working Temperature:               0-250°C

    Nominal Size:                            DN50-1200

    End Connection:                        Wafer End

    Design Standard:                       AS, ASME,BS, DIN,EN, ISO

    Face To Face:                            ASME B16.10

    Flange Drilling:                          ASME B16.5

    Inspection And Test:                  API598



    PRODUCT PARTS AND MATERIALS

    Body Material:                        WCB, Stainless steel

    Disc Material:                         WCB, Stainless steel

    Pressure Plate Ring:              Stainless Steel

    Stem Materail:                        17-4PH

    Seat Material:                         RPTFE

    Operation:                              Turbine,Gear

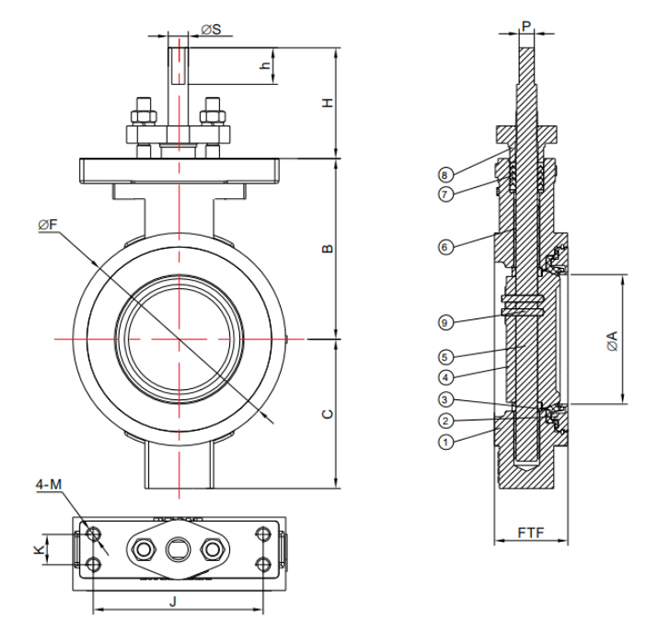

Dimensions

Technical Parameters Class 150

SIZEDNLΦABCΦFHhPΦSJKM
2"504450827010242.514710125.422.4M10
2-1/2"65485911182118822711.214.8125.422.4M10
3"85487312093132822711.214.8125.422.4M10
4"1005496133110157822711.214.8125.422.4M10
5"12557111135120186822711.214.8125.422.4M10
6"1505714215213521782271418125.422.4M10
8"20064188187172273822715.921.9125.422.4M10
10"25071236231202330972820.628142.737.3M10
12"30081282260241376973323.833.3142.737.3M10
14"350923143152954131054128.737142.737.3M10
