PERFORMANCE ADVANGATE

1.Side flange complies with GB,DIN,GOST,ASME,BS, JIS standard.

2.GGG40 valve body material, level 3 spheroidizationl rate. Stronger mechanical properties,

tensile strength 450Mpa, elongation more than 10%. Compared withl gray iron body, tensile strength

of the same thickness is twice that of gray iron body. The applicable working pressure is higher.

3.Akzo Nobel epoxy coating. Spray thickness up to 250 m. Strong adhesion.

4.lmport EPDM rubbermaterial. 50% rubber content. Stable and small torque,zero leakage after open

and close more than 10000 times.

TECHNICAL SPECIFICATION

Model:                                     D342X-16Q

Working Pressure :                 1.6Mpa

Working Temperature:             0-100°C

Nominal Size:                         DN50-1200

End Connection:                     Flange End

Design Standard:                    AS, ASME,BS, DIN,EN, ISO

Face To Face:                         ASME B16.10

Flange Drilling:                       ASME B16.5

Inspection And Test:               API598

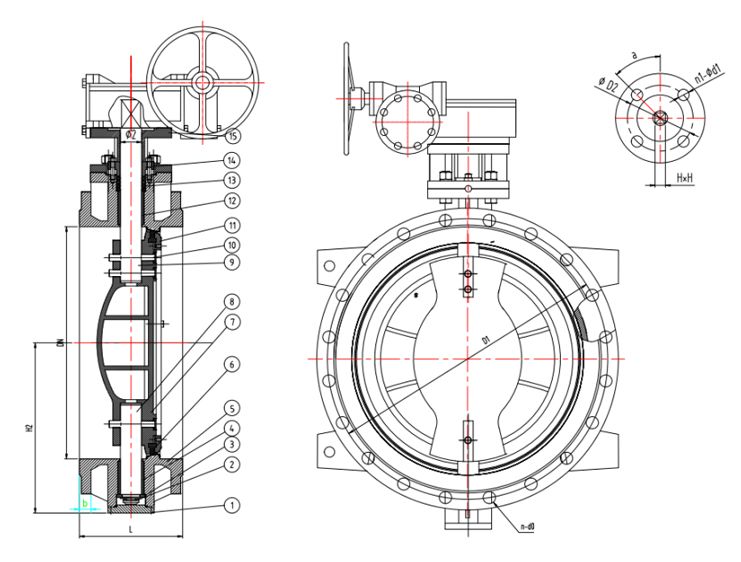

PRODUCT PARTS AND MATERIALS

Body Material:                        Ductile iron

Disc Material:                         Ductile iron

Pressure Plate Ring:              Stainless Steel

Stem Materail:                       SS410

Seat Material:                        EPDM

Body coating:                         Epoxy

Operation:                              Turbine,Gear
