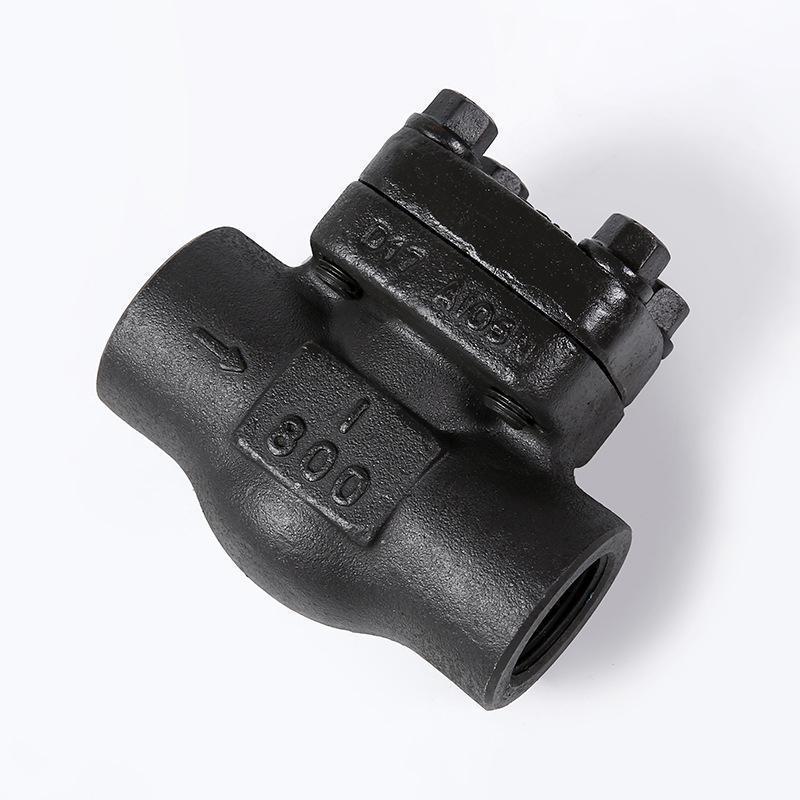

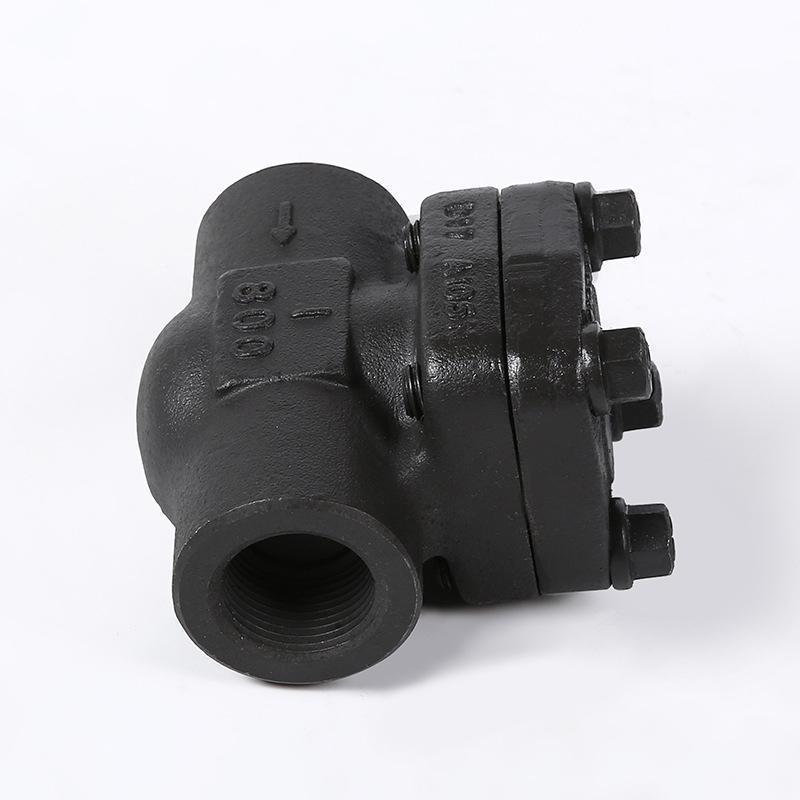

A105 Material Socket Welding/ NPT Threaded Swing Check Valve 800LB
A105 Material Socket Welding/ NPT Threaded Swing Check Valve 800LB
A105 Material Socket Welding/ NPT Threaded Swing Check Valve 800LB
  • A105 Material Socket Welding/ NPT Threaded Swing Check Valve 800LB
  • A105 Material Socket Welding/ NPT Threaded Swing Check Valve 800LB
  • A105 Material Socket Welding/ NPT Threaded Swing Check Valve 800LB
A105 Material Socket Welding/ NPT Threaded Swing Check Valve 800LB
Certification: AIP6D,API598,API600,CE,ISO9001,FM,UL etc.
Transport Package: Wooden box packaging, or as per customer's request.
Quotation period: All quotations and drawings will be provided within 24 hours.
Delivery Time:
We have our own foundry to gurantee casting pieces in time, and sufficient valve parts in stock to ensure fast delivery time.
Quality Control:
All valves will be double side pressure test to make sure no leakage before shipment
Talor-Made Service:
CAD design to fulfill customers’request, OEM is available.

Product Introduction

      PERFORMANCE ADVANGATE

      1.Full diameter or reduced diameter,

      2.Lift check valve;

      3.Ball check valve:

      4.Swing check valve;

      5.Built-in springs as required:

      Bolt connection, spiral wound gasket sealing bonnet, threaded connection, fully welded sealing bonnet

      6.The disc can be changed to soft seal, disc and spherical disc



      TECHNICAL SPECIFICATION


      Model:                                    H14H-800LB/H64H-800LB

      Working Pressure :                 PN140

      Working Temperature:            ≤425°C

      Nominal Size:                         DN15-50

      End Connection:                     Socket welding,Butt welding end,Thread end

      Design Standard:                    API602,ASME B16.34

      Face To Face:                         ASME B16.10

      Flange Drilling:                       ASME B16.5

      Inspection And Test:               API598


      PRODUCT PARTS AND MATERIALS

      Body Material:                        A105

      Bonnet Material:                     A105

      Disc Material:                         F6a

      Stem:                                     410

      Seat:                                      CR13

      Handwheel:                            A197

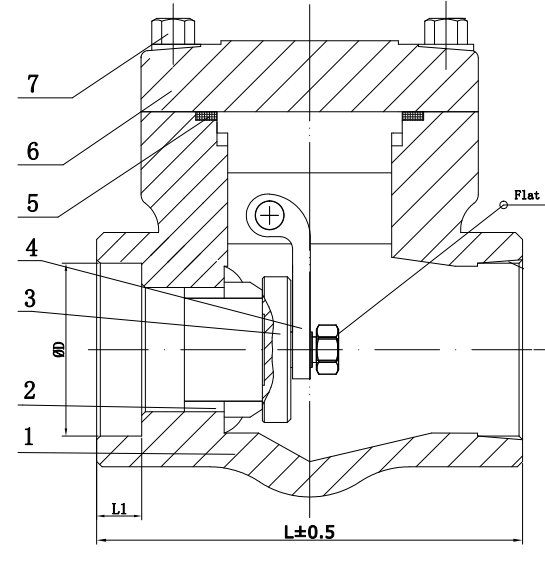

Dimensions

Technical Parameters 800LB
NPSLDL1H
1/2"8021.89.661
3/4"9227.112.761
1"11133.812.778
1-1/4"12042.612.784
1-1/2"12048.712.7101
2"14061.116120
