PERFORMANCE ADVANGATE

1.Full diameter or reduced diameter,

2.Rising pole bracket type(OS&Y)

3.Self_centering pressure plate pressure sleeve type;

4.Bolt connection, spiral wound gasket sealing bonnet, threaded connection, fully welded sealing bonnet

And threaded connection internal pressure self-tightening bonnet

5.Integral upper sealing seat

6.The socket end confoms to ASME B16.11;

7.The disc can be changed to throttle type, needle type, ball type and non-returm type.

TECHNICAL SPECIFICATION

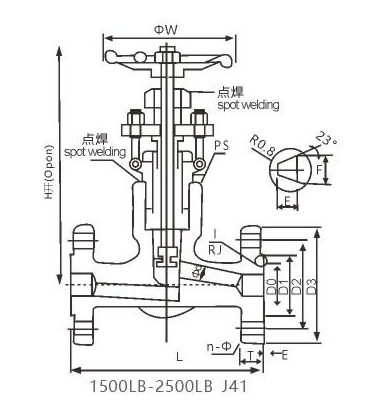

Model:                                    J41H-2500LB

Working Pressure :                 PN420

Working Temperature:            ≤425°C

Nominal Size:                         DN15-50

End Connection:                     RF Flange,RTJ Flange,ASME B16.5

Design Standard:                    GB/T9113;JB/T82.1-82.4;HG20592(RF,FM,RJ);API600

Face To Face:                         ASME B16.10

Flange Drilling:                       ASME B16.5

Inspection And Test:               API598

PRODUCT PARTS AND MATERIALS

Body Material:                        A105

Bonnet Material:                     A105

Disc Material:                         F6a

Stem:                                     410

Seat:                                      CR13

Handwheel:                            A197
