Single Ball Rubber Joints with JIS10K Flange
  • Single Ball Rubber Joints with JIS10K Flange
Single Ball Rubber Joints with JIS10K Flange
Certification: AIP6D,API598,API600,CE,ISO9001,FM,UL etc.
Transport Package: Wooden box packaging, or as per customer's request.
Quotation period: All quotations and drawings will be provided within 24 hours.
Delivery Time:
We have our own foundry to gurantee casting pieces in time, and sufficient valve parts in stock to ensure fast delivery time.
Quality Control:
All valves will be double side pressure test to make sure no leakage before shipment
Talor-Made Service:
CAD design to fulfill customers’request, OEM is available.

Product Introduction

    TECHNICAL SPECIFICATION

    Working Pressure :                    PN16

    Working Temperature:               -29~110°C

    Nominal Size:                            DN15-DN600

    End Connection:                        Flange PN10, PN16, 150LB, JIS10K, Table D, Table E

    Design Standard:                      JIS B2074 B2084

    Face To Face:                           JIS B2002

    Flange Drilling:                         JIS B2212 B2214

    Inspection And Test:                 JIS B2003




    PRODUCT PARTS AND MATERIALS

    Body Material:                          EPDM,NBR,NR

    Flange material:                       Carbon Steel, Stainless Steel

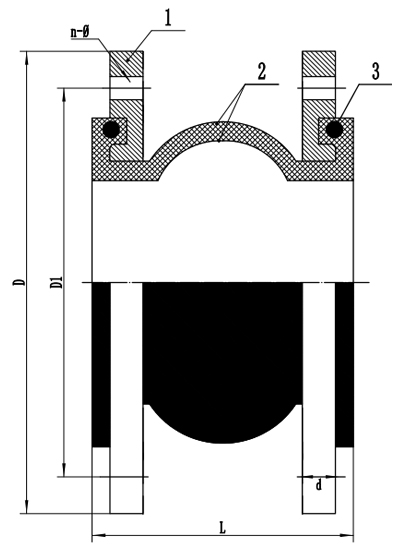

Dimensions

Technical Parameters JIS10K

DNLDD1n-Φd
32951351004-Φ1916
40951401054-Φ1916
501051551204-Φ1916
651151751404-Φ1918
851351851508-Φ1918
1001502101758-Φ1918
1251652502108-Φ2320
1501802802408-Φ2322
20021033029012-Φ2322
25023040035512-Φ2524
30024544540016-Φ2524
