Threaded Natural Double Ball Rubber Joint
  • Threaded Natural Double Ball Rubber Joint
Threaded Natural Double Ball Rubber Joint
Certification: AIP6D,API598,API600,CE,ISO9001,FM,UL etc.
Transport Package: Wooden box packaging, or as per customer's request.
Quotation period: All quotations and drawings will be provided within 24 hours.
Delivery Time:
We have our own foundry to gurantee casting pieces in time, and sufficient valve parts in stock to ensure fast delivery time.
Quality Control:
All valves will be double side pressure test to make sure no leakage before shipment
Talor-Made Service:
CAD design to fulfill customers’request, OEM is available.

Product Introduction

    RUBBER EXPANSION JOINTS SPECIFICATIONS

    Working Pressure :                    PN16

    Working Temperature:               -29~110°C

    Nominal Size:                            DN15-DN100

    End Connection:                        Threaded

    Design Standard:                       DIN3352

    Face To Face:                            DIN EN558

    Flange Drilling:                           DIN EN1092-2

    Inspection And Test:                   DIN EN12266-1




    PRODUCT PARTS AND MATERIALS

    Body Material:                          EPDM,NBR,NR

    Flange material:                       Carbon Steel, Stainless Steel

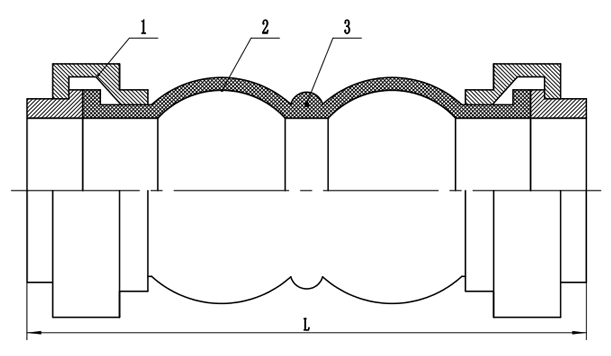

Dimensions

DNLAxial CompressionAxial ElongationDeflection Angle
1519010540
2019510540
2520010540
3222010540
4022010540
5022010540
6524510540
8028510540
