Single Sphere Rubber Expansion Joints PN16
  • Single Sphere Rubber Expansion Joints PN16
Single Sphere Rubber Expansion Joints PN16
Certification: AIP6D,API598,API600,CE,ISO9001,FM,UL etc.
Transport Package: Wooden box packaging, or as per customer's request.
Quotation period: All quotations and drawings will be provided within 24 hours.
Delivery Time:
We have our own foundry to gurantee casting pieces in time, and sufficient valve parts in stock to ensure fast delivery time.
Quality Control:
All valves will be double side pressure test to make sure no leakage before shipment
Talor-Made Service:
CAD design to fulfill customers’request, OEM is available.

Product Introduction


    TECHNICAL SPECIFICATION

    Working Pressure :                    PN16

    Working Temperature:               -29~110°C

    Nominal Size:                            DN15-DN600

    End Connection:                        Flange

    Design Standard:                       DIN3352

    Face To Face:                            DIN EN558

    Flange Drilling:                           DIN EN1092-2

    Inspection And Test:                   DIN EN12266-1




    PRODUCT PARTS AND MATERIALS

    Body Material:                          EPDM,NBR,NR

    Flange material:                       Carbon Steel, Stainless Steel

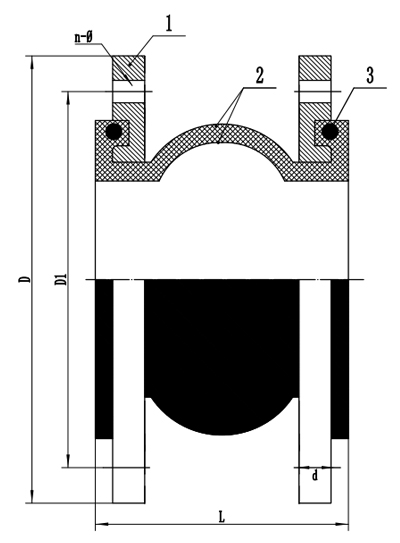

Dimensions

Technical Parameters PN16

DNLDD1n-Φd
32951401004-Φ1813
40951501104-Φ1814
501051651254-Φ1816
651151851454-Φ1816
851352001608-Φ1818
1001502201808-Φ1819
1251652502108-Φ1820
1501802852408-Φ2221
20021034029512-Φ2223
25023040535512-Φ2625
30024546041012-Φ2625
