Rubber Joint Expansion 150 Class EPDM Ball
  • Rubber Joint Expansion 150 Class EPDM Ball
Rubber Joint Expansion 150 Class EPDM Ball
Certification: AIP6D,API598,API600,CE,ISO9001,FM,UL etc.
Transport Package: Wooden box packaging, or as per customer's request.
Quotation period: All quotations and drawings will be provided within 24 hours.
Delivery Time:
We have our own foundry to gurantee casting pieces in time, and sufficient valve parts in stock to ensure fast delivery time.
Quality Control:
All valves will be double side pressure test to make sure no leakage before shipment
Talor-Made Service:
CAD design to fulfill customers’request, OEM is available.

Product Introduction


    TECHNICAL SPECIFICATION

    Working Pressure :                    150LB

    Working Temperature:               -29~110°C

    Nominal Size:                            DN15-DN600

    End Connection:                        Flange

    Design Standard:                       API609

    Face To Face:                            API609

    Flange Drilling:                           ANSI B16.10

    Inspection And Test:                   API598




    PRODUCT PARTS AND MATERIALS

    Body Material:                          EPDM,NBR,NR

    Flange material:                       Carbon Steel, Stainless Steel

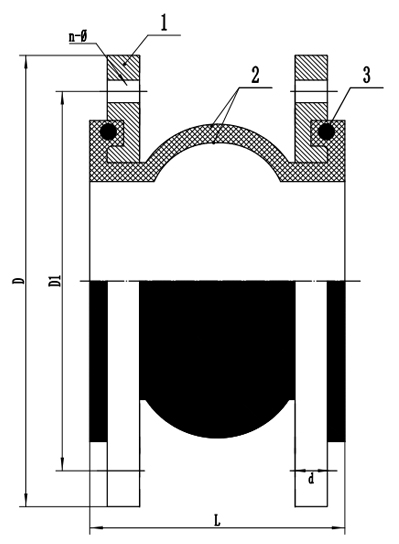

Dimensions

Technical Parameters 150LB

DNDD1n-ΦLd
3211788.94-Φ169514
4012798.64-Φ169515
50152120.54-Φ1910517
65178139.54-Φ1911518
85190152.54-Φ1913520
100226190.58-Φ1915022
125254216.08-Φ2216522
150279241.58-Φ2218024
200340298.58-Φ2221024
25040636212-Φ2523026
30048343212-Φ2524528
35053347612-Φ2825530
