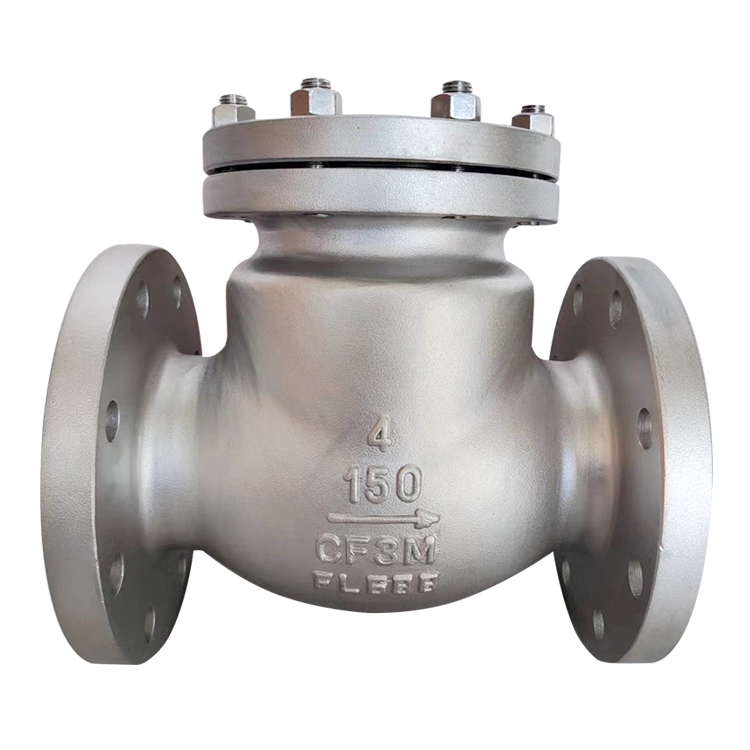

JIS20K Stainless Steel Swing Type Check Valve
  • JIS20K Stainless Steel Swing Type Check Valve
JIS20K Stainless Steel Swing Type Check Valve
Certification: AIP6D,API598,API600,CE,ISO9001,FM,UL etc.
Transport Package: Wooden box packaging, or as per customer's request.
Quotation period: All quotations and drawings will be provided within 24 hours.
Delivery Time:
We have our own foundry to gurantee casting pieces in time, and sufficient valve parts in stock to ensure fast delivery time.
Quality Control:
All valves will be double side pressure test to make sure no leakage before shipment
Talor-Made Service:
CAD design to fulfill customers’request, OEM is available.

Product Introduction


    PERFORMANCE ADVANGATE

    1.Rational structure, reliable sealing, excellent performance,pretty appearance.

    2.Co-radix alloy welded sealing surface, anti-wearing, erosion-proof abrasion-proof and longer use life.

    3.Inside-set bolt-bearing structure reduces leakage and reliable use.

    4.Different parts materials and different sizes for flange, butt-welding are available for sensible combination according

    to different working facts and customer's requirements.



    TECHNICAL SPECIFICATION


    Model:                                    H44W-20K

    Working Pressure :                 50 Bar

    Working Temperature:            ≤425°C

    Nominal Size:                         DN50-600

    End Connection:                     RF Flange,RTJ Flange,ASME B16.5

    Design Standard:                    JIS B2074 B2084

    Face To Face:                         JIS B2002

    Flange Drilling:                       JIS B2212 B2214

    Inspection And Test:               JIS B2003


    PRODUCT PARTS AND MATERIALS

    Body Material:                        SCS13

    Bonnet Material:                     SCS13

    Disc Material:                         SCS13

    Pin:                                        SS304

    Seat:                                      SS304

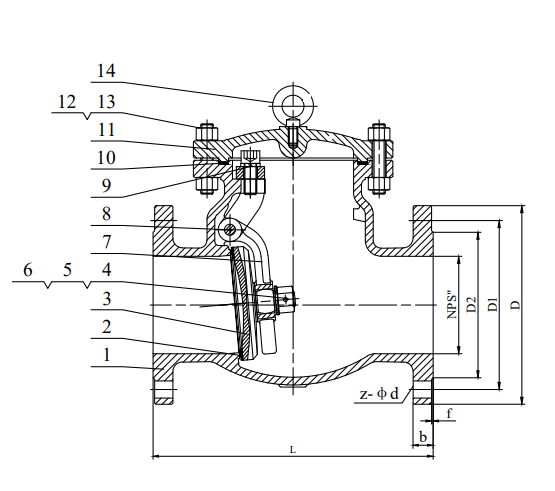

Dimensions

Technical Parameters JIS20K

NPSLDCBTn-d
2"26715512096184-Φ19
2-1/2"292175140116208-Φ19
3"318200160132228-Φ23
4"35622518516024

8-Φ23

5"400270225195268-Φ25
6"4443052602302812-Φ25
8"5333503052753012-Φ25
10"6224303803453412-Φ27
12"7114804303953616-Φ27

Related Products

Non standard customization can be made according to customer needs
