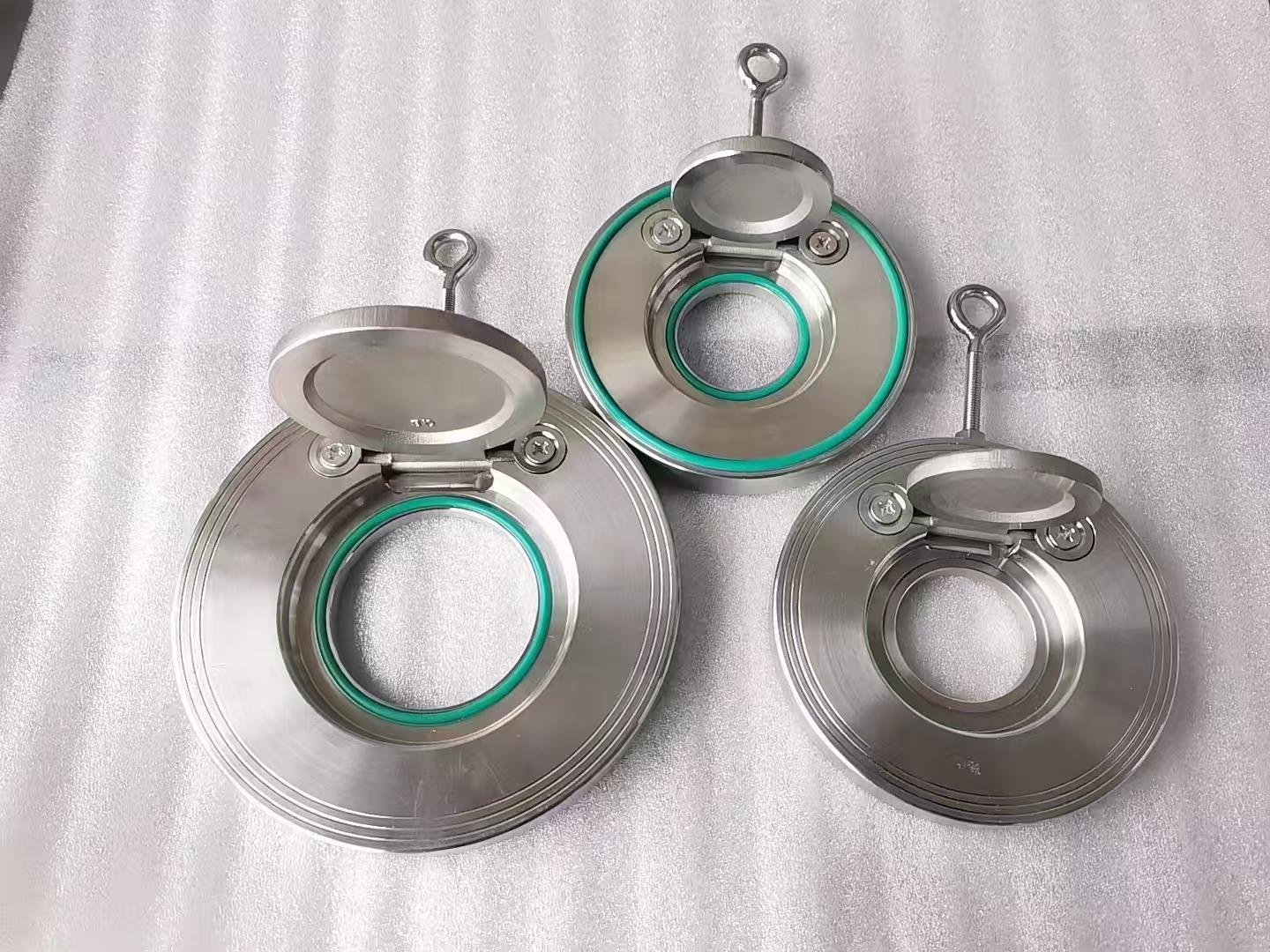

Single Plate Wafer Check Valve
Single Plate Wafer Check Valve
  • Single Plate Wafer Check Valve
  • Single Plate Wafer Check Valve
Single Plate Wafer Check Valve
Certification: AIP6D,API598,API600,CE,ISO9001,FM,UL etc.
Transport Package: Wooden box packaging, or as per customer's request.
Quotation period: All quotations and drawings will be provided within 24 hours.
Delivery Time:
We have our own foundry to gurantee casting pieces in time, and sufficient valve parts in stock to ensure fast delivery time.
Quality Control:
All valves will be double side pressure test to make sure no leakage before shipment
Talor-Made Service:
CAD design to fulfill customers’request, OEM is available.

Product Introduction

    PERFORMANCE ADVANGATE

    1.Precision casting valve body, smooth appearance, no sand hole.

    2.CNC lathe processing of internal parts, 2 shot blasting after appearance processing.

    3.SS seat, good wear resistance.

    4.Inverted seal treatment of contact surface between bonnet and stem to avoid leakage.

    5.Stem is processed by cyclone milling to avoid opening/closing stem difficulty.



    TECHNICAL SPECIFICATION

    Model:                                       H74F-16P

    Working Pressure :                   1.6Mpa

    Working Temperature:              ≤150°C

    Nominal Size:                           DN40-DN400

    End Connection:                      Wafer

    Design Standard:                     DIN EN12334

    Face To Face:                          DIN3202

    Inspection And Test:                DIN EN12266-1



    PRODUCT PARTS AND MATERIALS

    Body Material:                        SS304,SS316,CF8,CF8M

    Bonnet Material:                     SS304,SS316,CF8,CF8M

    Disc Material:                         SS304,SS316,CF8,CF8M

    Seat:                                      SS304,SS316,CF8,CF8M,Viton

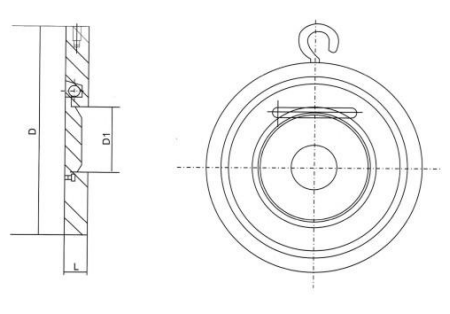

Dimensions

Related Products

Non standard customization can be made according to customer needs
