PERFORMANCE ADVANGATE

1.Side flange complies with GB,DIN,GOST,ASME,BS, JIS standard.

2.GGG40 valve body material, level 3 spheroidizationl rate. Stronger mechanical properties,

tensile strength 450Mpa, elongation more than 10%. Compared withl gray iron body, tensile strength

of the same thickness is twice that of gray iron body. The applicable working pressure is higher.

3.Akzo Nobel epoxy coating. Spray thickness up to 250 m. Strong adhesion.

4.lmport EPDM rubbermaterial. 50% rubber content. Stable and small torque,zero leakage after open

and close more than 10000 times.

Check Valve Specifications

Model:                                         HQ41X-16

Working pressure :                     16 Bar

Working temperature:                -10~110°C

Nominal size:                              DN40-600

End connection:                         Double Flange

Design standard:                        DIN EN12334

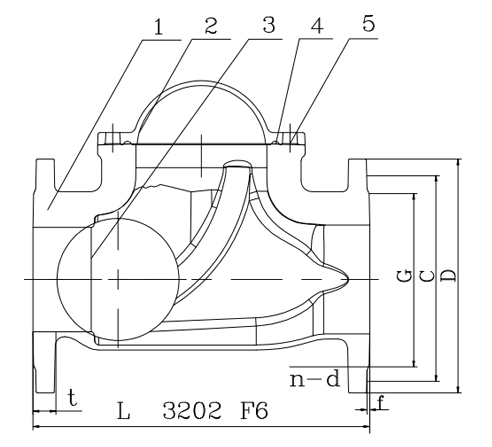

Face to face:                              DIN3202 F6

Flange drilling:                           DIN EN1092-2

Inspection and test:                   DIN EN12266-1

PRODUCT PARTS AND MATERIALS

Body Material:                          Ductile iron

Disc Material:                           SS304

Stem Materail:                         SS410

Seat Material:                          EPDM

Gear Material:                         Iron

Body coating:                          Epoxy
